CopterX CX 500SE Kit Carbon

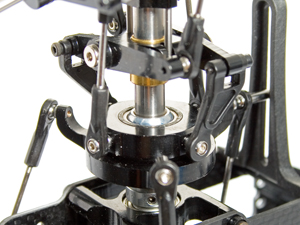

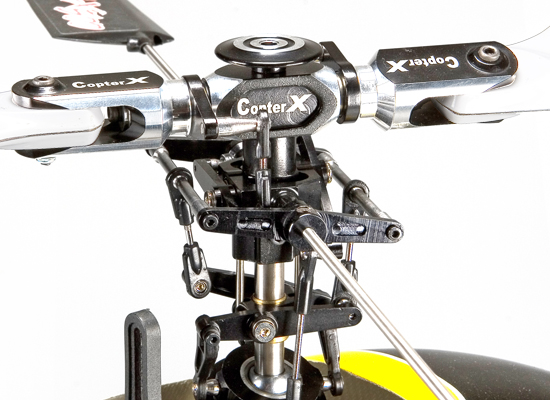

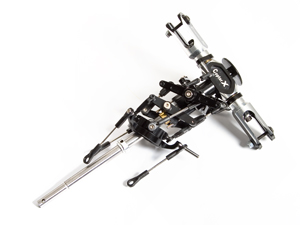

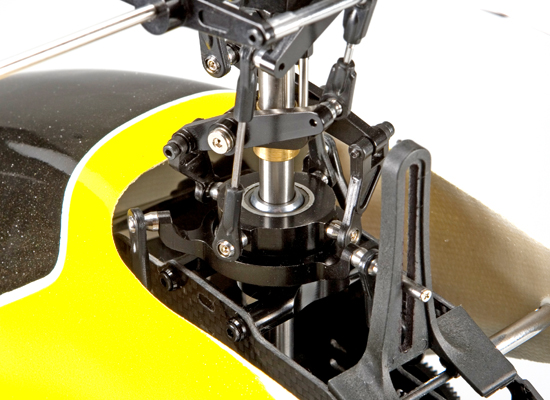

(High precision full CNC main rotor assembly)	(One piece swashplate)	(Alu. main shaft bearing block )

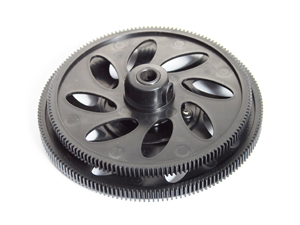

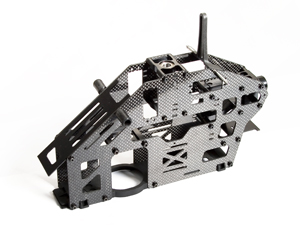

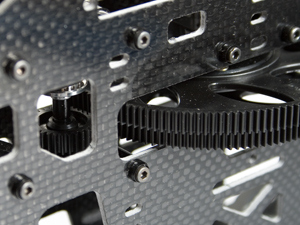

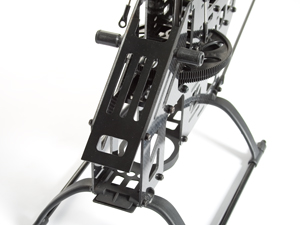

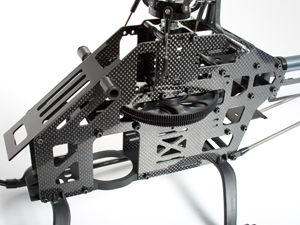

(New-sturdy lightweight main frame/2.0 mm)	(Extra long CNC battery mount for adjustable CG)	(Strong one way gear set for auto-rotation)

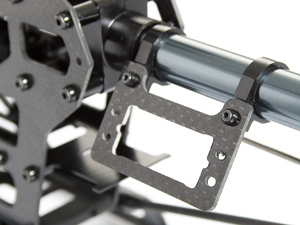

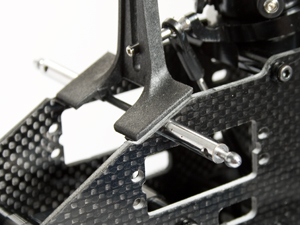

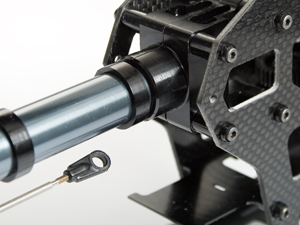

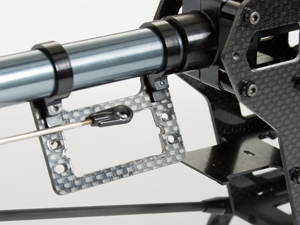

(Composite Anti-rotation Bracket)	(Alu. Tail Boom Lock)	(Alu. CF rudder servo mount)

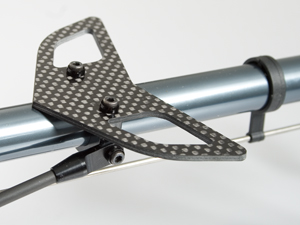

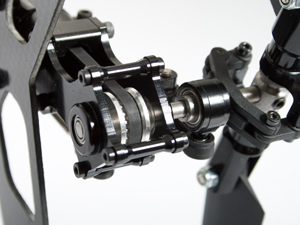

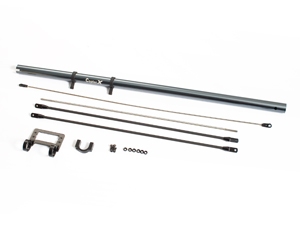

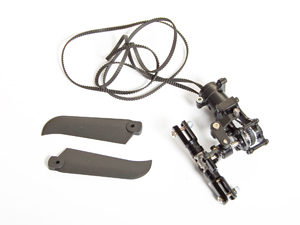

(Alu. Gyro mount)	(CF boom support with Alu. stabilizer mount)	(Alu tail rotor case)

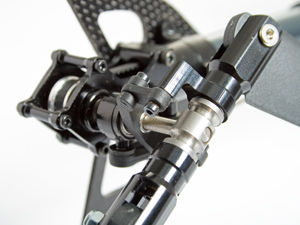

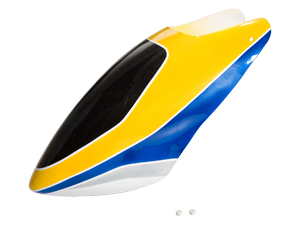

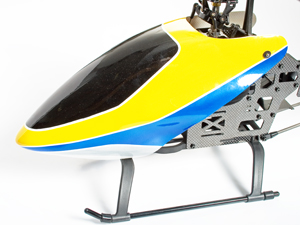

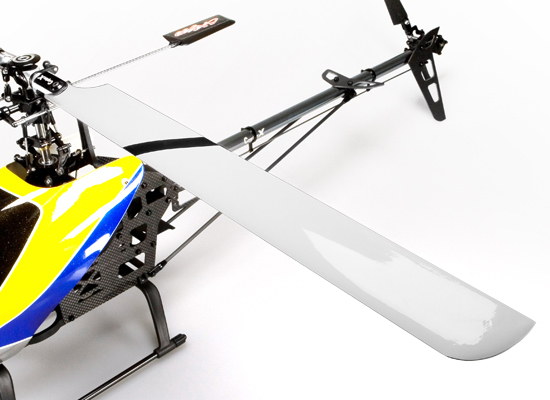

(Alu tail blade holder)	(Durable Glass Fiber Main Rotor Blades)	(Streamlined Glass Fiber Canopy)
ARF assembly illustration

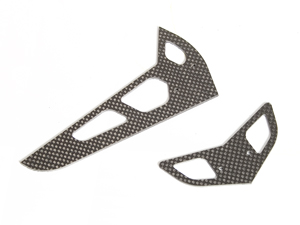

Feature Simple and light weight design provides awesome flight performance and extreme 3D capability Rigid carbon fiber frame design Carbon fiber stabilizer set Full Alu. main and tail rotor set Streamlined factory painted fiberglass canopy Rotor head/tail with thrust bearings Direct-to-swash CCPM linkage Tail rotor drive belt system Fully driven tail auto rotation system Alu tail servo boom mount Carbon fiber Tail Boom Brace Long CNC battery mount for adjustable CG Specification Length: 850mm Height: 310mm Main rotor: 970mm Tail rotor: 200mm Main Gear: 162T Autorotation Tail Drive: 145T Tail Drive gear: 31T Gear Ratio: 1:13.5:4.68 Weight(without power system): 1030g

Electronics recommended for this kit 500

.

CopterX 500L 1600Kv Brushless Motor with Pinion Gear CopterX 70A ESC with BEC CopterX 240Gyro Fusonic (HB-D-9650) 9650 25g High Torque Mini Servo X 3 Fusonic (HB-D-9257-V2) 9257 25g High Speed Mini Digital Servo
