HMV120D02 - Helicopter Flybarless + WK2801PRO (2.4Ghz Red Special Edition 2011) [HMV120D02]	369,00€
Shipping Information Estimated delivery date : 05/23/2012
Ask a question about this product...

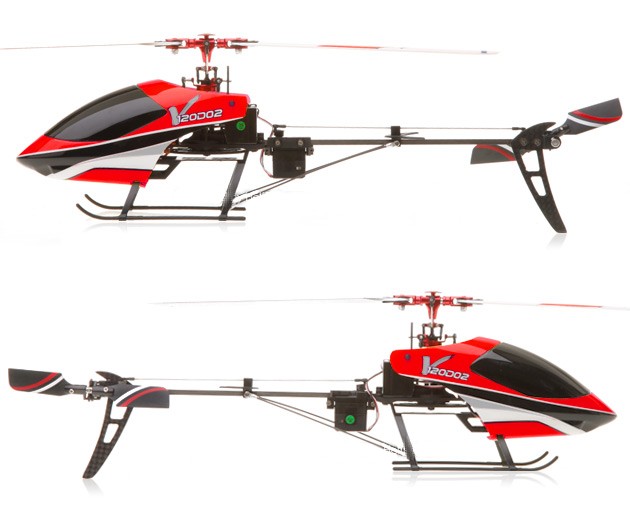

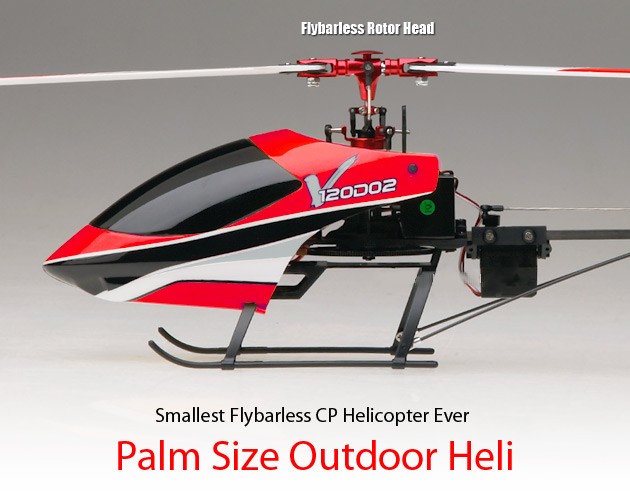

Flybarless Palm Size Helicopter, Let's Go Outdoor!
This year every RC hobbyist are talking about Flybarless Helicopter. Now Walkera has developed the Smallest Flybarless CP Helicopter in the World - the V120D02. It is a Palm Size Helicopter, with Collective Pitch Flybarless Rotor Head and a 10000KV brushless motor, it can resist light breeze in outdoor condition, so you can fly in beautifully in the backyard or in the park! It also has everything you find on a big helicopter, like three CCPM servos, Brushless Motor and ESC, a 2.4Ghz All-in-One Receiver, a Gyro (3-Axis) and a Rudder Servo, the only difference is the V120D02 is even better, because it has a 3-Axis Gyro which other RC Helicopters usually don't have.You may ask "Why Flybarless is good?". Please allow me to explain.

What is a Flybar?
The flybar is a short, thin metal rod placed on top of the helicopter. It is part of the rotor head’s structure, usually attached with a paddle on both ends. The flybar is a stabilizer. The heavier the paddle and longer the flybar, the more stable the heli. However, you can compensate by using the high-tech 3-Axis Gyro. The onboard RX2410V Super Controller makes the V120D02 fly so well that it performs just like an ordinary rotor head helicopter.

Why Make it “Flybarless?”
Flybarless means less moving parts. That saves energy and allows you to fly 20 to 30 percent longer. Also, less parts mean less repairing. Flybarless is the future of RC helicopters!

Difference between V120D01, V120D02 and 4G6S
4G6S is the "Standard" RC Helicopter for all time, about the size of your palm, it has a flybar and a 3-Axis Gyro, I would say it is the "Benchmark model". For V120 series, V means "Flybarless", 120 means it's size at "120" class, same size as 4G6S. V120D01 is a 4-Channel Fixed Pitch Heli, made for beginners. V120D2 is a 6-Channel Collective Pitch Helicopter, made for intermediate to expert players. V120 series are evolved from 4G6S series, 80% parts are common. Only difference are V120 series does not have flybar, 4G6S has a flybar.

100% Pre-Assembled
It's 100% assembled, you can have it flying in just a few minutes out of the box. Just a quick charge of the battery and you are ready for lift off!

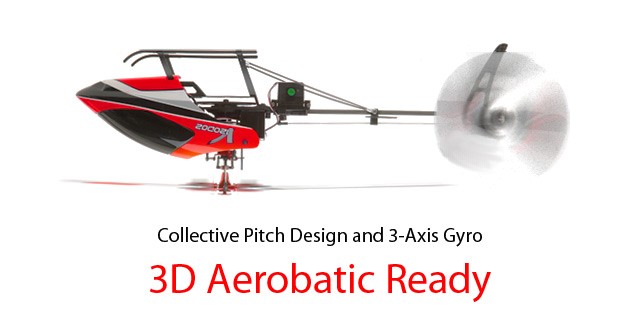

3D Flying Ready - Able to store Pitch Curves and Throttle Curves for 3D Aerobatics

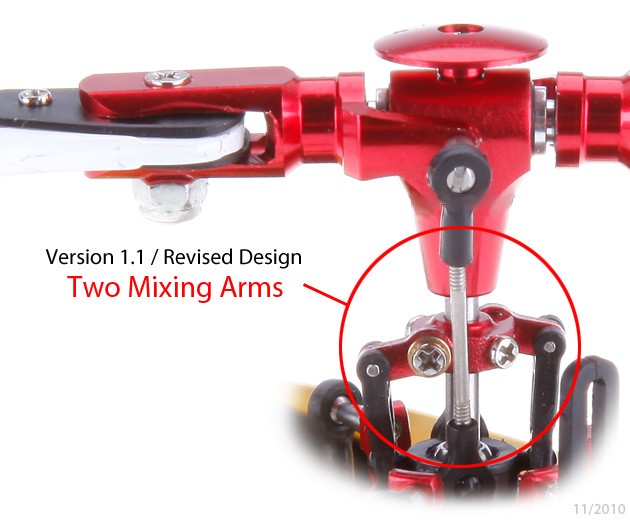

Updated Design V1.1 - Stronger Mixing Arms

Slightly longer than your palm, perfect for Indoor and Outdoor Flight

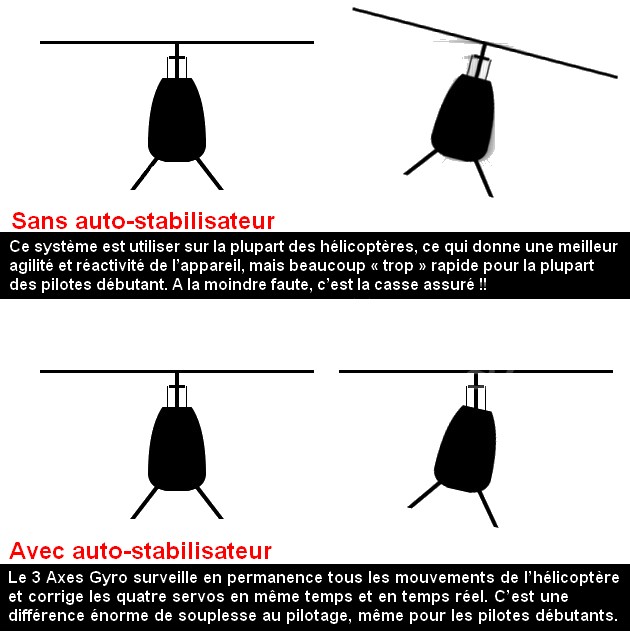

What is 3-Axis Gyro?

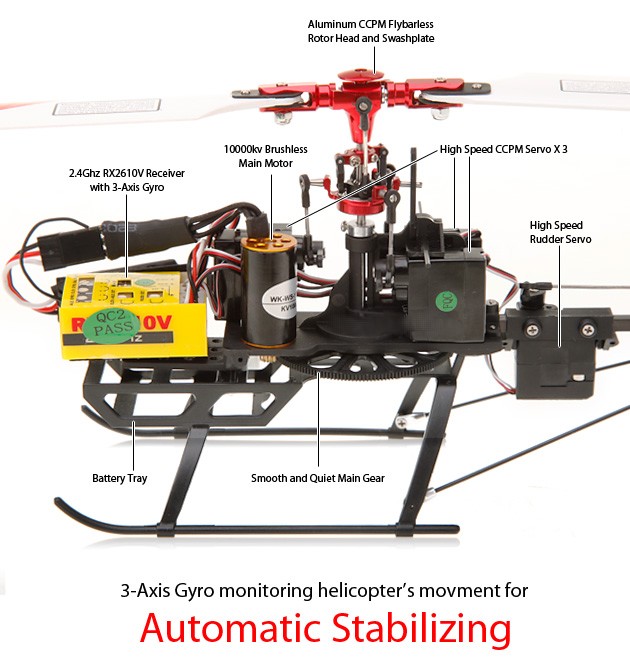

3-Axis Gyro means it can sense X, Y and Z axis moments, that means body leaning forward / backward, body rolling left / right, tail drifting CW / CWW, it will constantly monitoring any off-balance in all directions, then it will give signals to all CCPM servos and Rudder servo to balance the helicopter, it works constantly and unless you have the helicopter drifts to much, you will not even notice the system exists, please take a look at the following picture.

Breakthrough in Palm Size Helicopter - They go Flybarless!

Outdoor 3D Flight Available (Light Breeze Condition)
CCPM system and Gyro allows professional 3D flight. The size of this helicopter is so small. You can fly it inverted at home, office or bed room. It is unbelievable in the past.

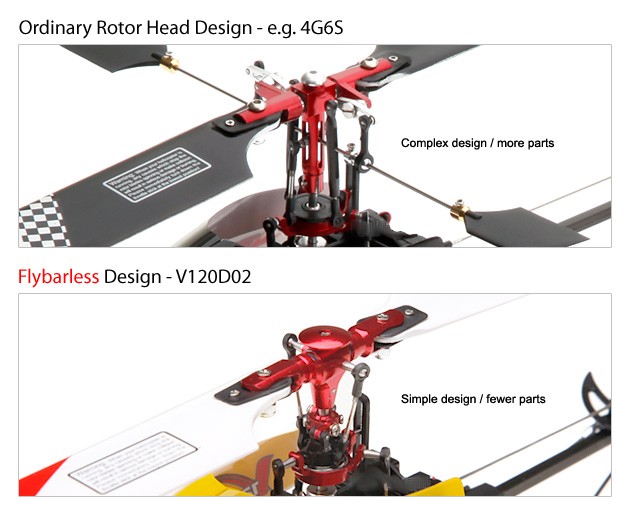

Comparing 4G6S and V120D02

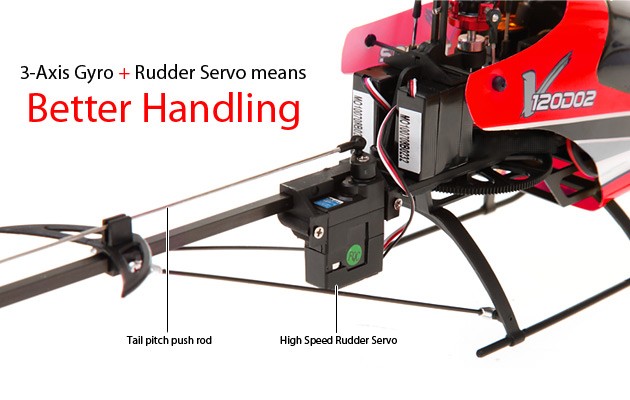

3-Axis Gyro and Rudder Servo means good!
Tail rotor is used to generate wind to counter act the main rotor rotation. Precise of tail rotor wind is needed to keep the helicopter heading one direction. We usually have two ways in generating the precise of wind from the tail rotor, one is the Tail Motor, another one is sharing the power from the Main Motor by a tail drive shaft. Tail Motor is usually slower, sometimes it can't keep up with the main motor's speed and causing the tail to drift while heli when you're making quick ascend or descend. The best solution is to have a Gyro and Rudder Servo. By changing the Tail Rotor blade pitch, you can adjust the amount of wind generating to keep the heli in one heading, to do this, you need a good performance gyro constantly monitoring the heli heading and give correction to rudder servo, then it will push the tail rotor pitch. You will not imagine how quick it worked during the flight, but it is the heart and soul for any RC helicopter.

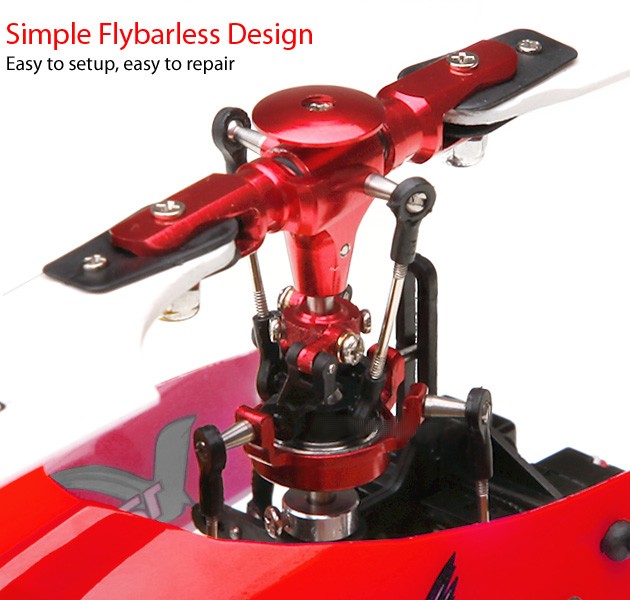

Aluminum Flybarless CCPM and Swashplate Design
Using the most common swashplate design in recent days, the main advantage of Flybarless CCPM swashplate design is that it has much less parts than ordinary RC Helis, less complicated to assemble and repair and because of the swashpalte was supported by 3 servos, it can distributes the forces over all 3 servos, leading to less workload on the servos.

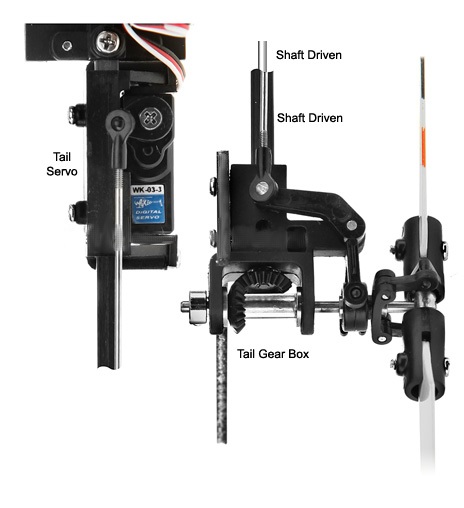

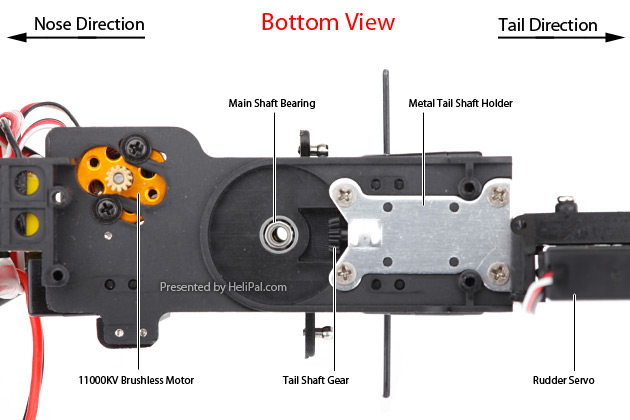

Tail Rotor and Tail Pitch Mechanism
Shaft driven tail rotor provides smoother and more precise power delivery.

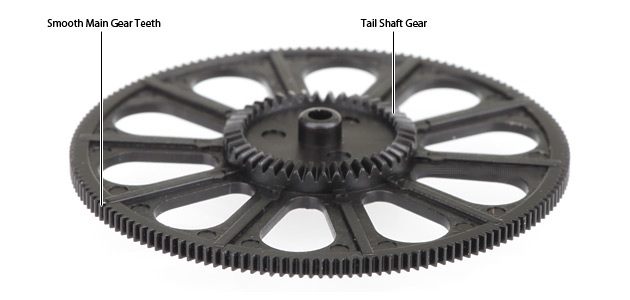

Special designed Main Gear
Integrated with Tail Shaft Gear, easy repair and less maintenance.

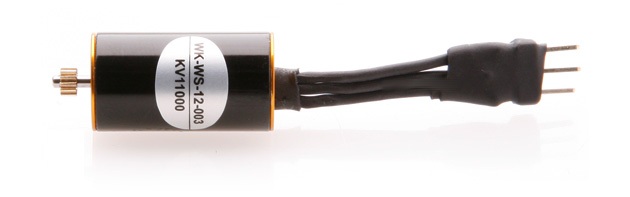

Powerful and Durable, 11000KV Brushless Main Motor
High power brushless motor offers higher rotation speed. This increase the stability of the helicopter dramatically.

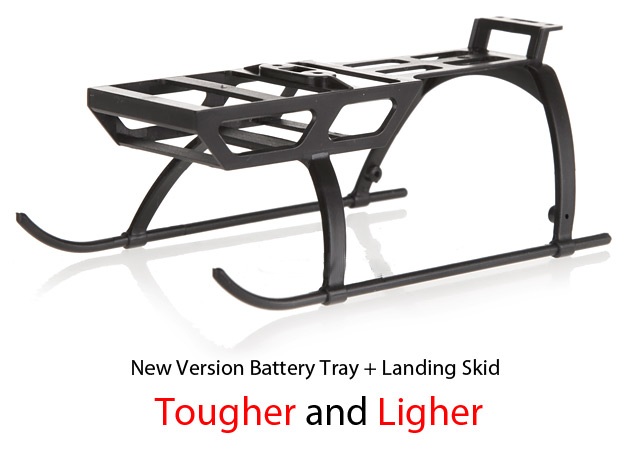

One Piece Battery Tray and Landing Skid
Stronger and tougher during a crash. The larger battery tray allows you to put bigger battery in it easily, like our Storm 700mAh 20C Battery.

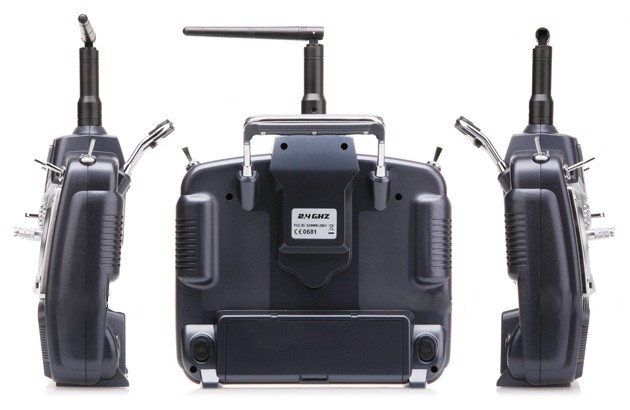

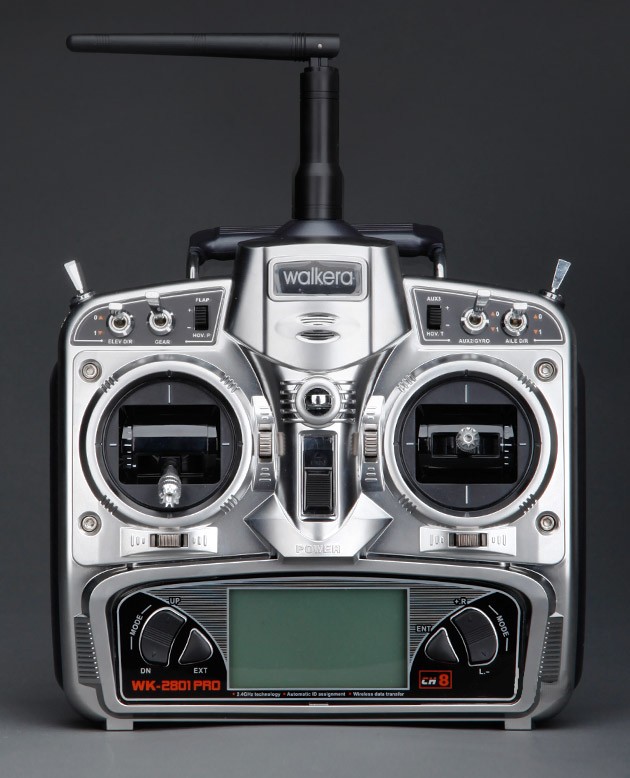

The all new WK2801-Pro Digital Transmitter
If you are really interesting in remote control helicopter hobby, it is worth to invest on a high-end digital professional remote controller. There are many famous remote controller manufacturer in the world such as JR and FUTABA. They have their own technology and standard. The problem is that they do not support the standard of Walkera helicopters. That's why Walkera wants to make a High-End transmitter like the WK2801-Pro for their Helicopters such as 4G6, 4G3, Creata400 or 60#B ... ... Walkera is an aggressive helicopter manufacturer. It is expected that they will create a lot of amazing helicopters in the future, it is time to invest on this remote controller. It is a long term investment. You can use it for all Walkera helicopters in the future as well.

Features
1. The WK2801-Pro adopts 2.4Gig spectrum technology and features automatic code pairing and ID memory.
2. LCD display of the WK2801-Pro is simple to understand and easy to set.
3. The transmitter case is ergonomically designed and the large LCD display has white backlight with easy-to-read graphics.
4. The length or tension of the controls stick can be adjusted and it is convenient to change the throttle from left to right.
5. The WK2801-Pro supports both helicopters and airplanes. It offers three helicopter flight modes and each flight mode is capable of free setting and adjusting parameter in order to suit the various requirements of F3C or 3D aerobatic flights.
6. Capable of wireless data copy and transfer between two transmitters.
7. Four Adjustable hot keys facilitate easy entry into the set menu.
8. Eight model memory storage.
9. Gyro rate adjustment by transmitter, and convenient programmed hover and 3D flights.

Specification
1. Encoder: 8 channel micro computer system
2. Frequency: 2.4G spread spectrum
3. Output Power: 100Mw
4. Current Drain: 120mA
5. Power: 1.2V X 8 NiCard (9.6V600mAh) or 1.5V X 8 AA dry batteries

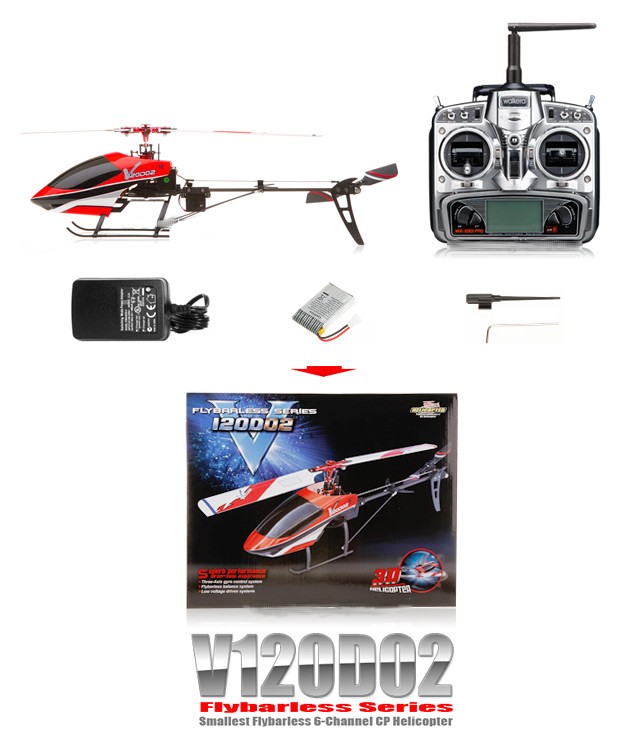

This package includes :
1. 8-Ch 2.4G WK2801-Pro Digital Transmitter
2. Pre-assembled Helicopter
3. Battery Charger
4. 3.7V 600mAh Li-Po Battery
5. Adjustment Tool and Spare Gears
6. Instruction Manual

Specification:

Main Rotor Diameter: 302mm

Tail Rotor Diameter: 85mm

Overall Length: 290mm

All-up Weight: 88g (Battery included)

Battery: 3.7V 600mAh Li-Po

ESC: WK-WST-10A-L3

Brushless Motor: WK-WST-12-003

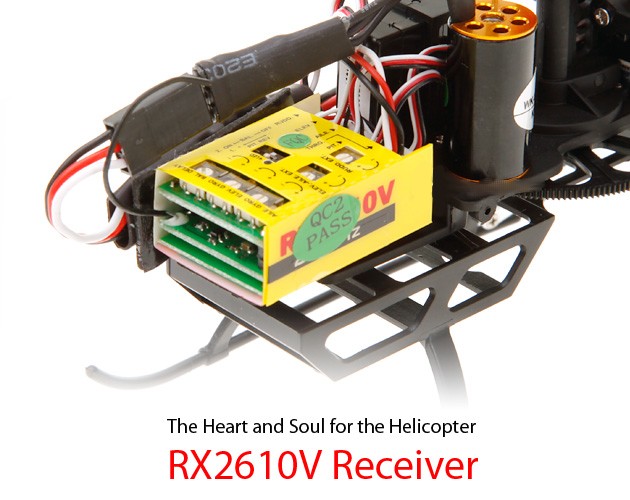

Receiver: RX-2610V

Dimension: 285*54*98mm
